Bulk materials handling sidewall inclined vertical conveyor belt with block/cleat
Characteristics:
Materials can be conveyed at a large slope up to 90degrees. The belt has large loading capacity and the materials horizontal. The conveyor is simple in structure, flexible in arrangement and occupying only a small area. The carcass material and strength of the belt can be selected according to requirements of users; we have the following carcass materials: Cotton (CC), Nylon (NN), and Polyester and nylon (EP).
Uses:
Owing to space limitation or in case of lifting materials at large slope, raised edge conveyor belt is often used to prevent scatter of conveyed materials. It is suitable for conveying materials at a large slope from 0 degree to 90 degrees.
Specifications of sidewall inclined vertical conveyor belt :
1.belt core material:cotton canvas,nylon,EP,polyester cotton
2.width:300-1400mm
3.thickness of covering rubber:working side:3-6mm,non-working side:1.5-4.5mm.
4.number of piles:2-10ply
5.Types:general types,oil resistant,chemical resistant,heat resistant,cold resistant types, etc.
Applications:

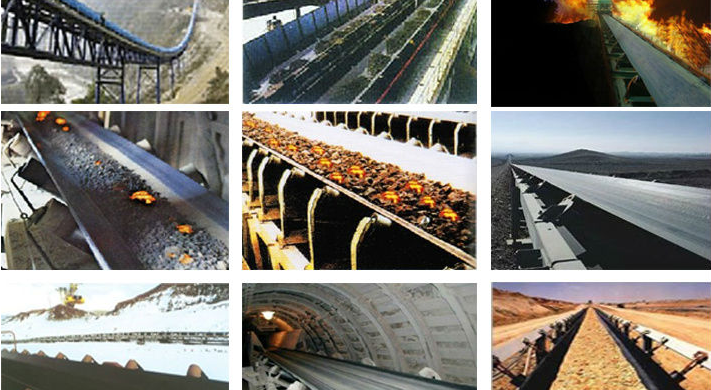

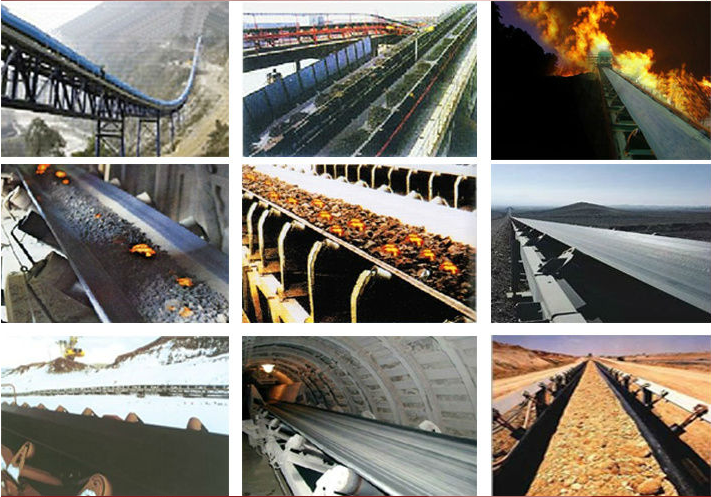

sidewall inclined vertical conveyor belt is widely used in ports, metallurgy, mining, electricity, coal mine, cement plant, power plant, heating stations, foundry, building materials, grain, fertilizer or chemical factory and other material handling industrial areas.
A variety of loose bulk materials can be continuously conveyed at arbitrary angle 0-90 degrees,it can do inclined or vertical conveying works,prevent materials from slidding down.
sidewall conveyor belt has many advantages,such as the large inclination-angle,the wide scope of applications,small occupation space,no transshipment point,low maintenance cost and large transport capacity.
