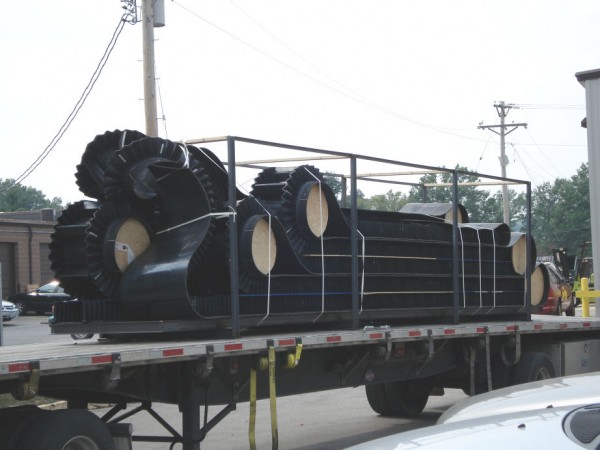

RUBBER CONVEYOR BELT WITH CORRUGATED EDGES EXPORT TO GENAS – FRANCE

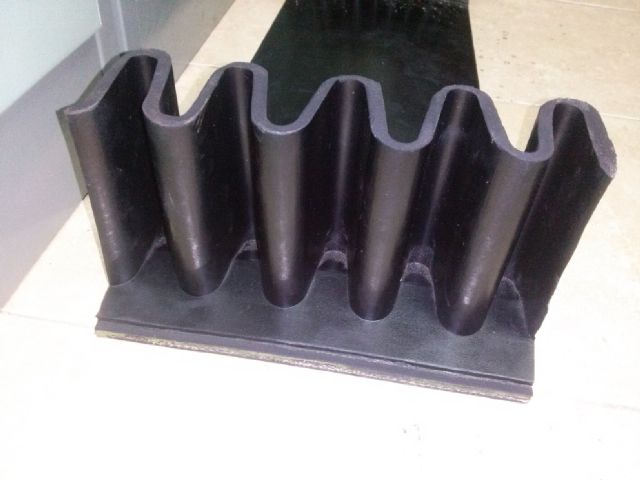

RUBBER CONVEYOR WITH SPLICED CORRUGATED EDGES
E 400 3PLIS 4 + 2 LARG 1000 MM x 8115 MM x 80 mm
Cleat Height H1 (mm)
Minimum 35mm to Max 460mm
Cleat types: T, TS, C, TC,TCS
The cleat is made of enforced fabric ,solid ,anti-shock to avoid distortion
“TS” and “TCS” cleats are normally used for abrasion condition, “T” and “TS” cleats are normally used up to 40 degree.
Type S The fabric insertion is of the diagonal type which gives excellent tear resistance and also allows the Sidewall to flex more easily.
The rubber compounds used have been tested to ensure maximum flexibility along with high abrasion resistant and high tensile strength.
Sidewalls has proved the design and rubber compounds work together in harmony increasing the life of the Sidewall and ensuring maximum durability.
- Standard Construction in heights from40mmto120mm
- Type SR
Standard construction but with Diagonal Fabric Reinforcement.
- Type HDSR
Heavy duty construction including fabric reinforcement as standard in heights from120mmto300mm.The fabric reinforcement is of the diagonal type ensuring maximum flexibility with high vertical stability. If required these can be supplied without fabric reinforcement to special order, Ref: HDS
- Type XHDSR
Heavy duty Special design including fabric reinforcement as standard in heights from 300mm to 630mm.
Rubber Qualities
- Black Standard High Abrasion Resistant
- Black Oil and Fat Resistant.
- Heat Resistant to100°C
- High Heat Resistant to150°C
- Flame Retardant
Other qualities may be available to special order.
