HIGH-RESISTANCE STEEL CORD CONVEYOR BELT

Steel Cord Conveyor Belts DIN Standard

Steel Cord Conveyor Belt using steel cords as its carcass barely has the elongation, so it is widely used in cement plant, power plant, quarry, mine, etc which are carrying heavy materials. Especially, it’s quite suitable for long lines requiring high tension. Steel Cord Conveyor Belts production according to DIN,RMA Standard,

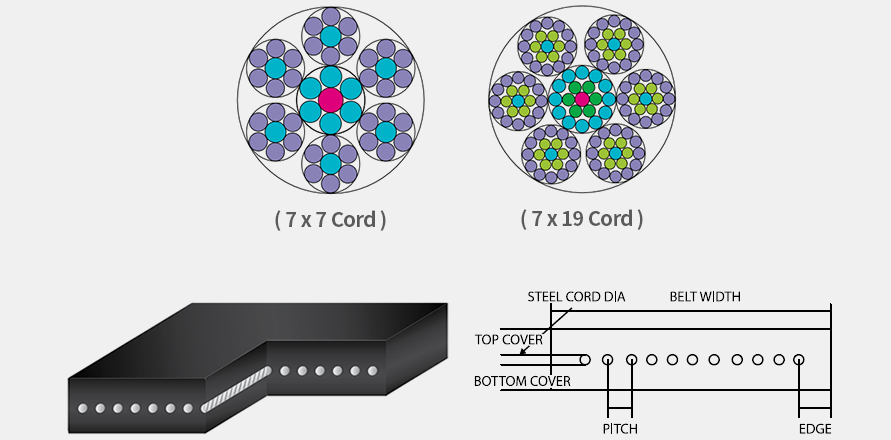

>Structure

Steel Cord Conveyor Belt RMA Standard

>Features

  • Low elongation

    Low elongation is the most outstanding feature of steel cord conveyor belt.
    Steel cord conveyor belt can make the take-up stroke very short thanks to the extremely low elongation(0.1~0.2%).

  • Good troughability
    In case of high tension belt, it has superior trough performance by using high strength steel cord rather than fabric belt using thick carcass.
Steel Cord Conveyor Belts DIN Standard

  • Pulley diameter can be made smaller

    Each steel cord bearing the belt tension is composed of wires of small diameter and therefore is more flexible than ordinary steel cables. Moreover, since the tension is supported by a uniform single layer of steel cords, the steel cord conveyor belt suffers less fatigue from repeated bending as compared with the fabric belt and therefore the pulleys can be made smaller in diameter.
  • High durability & better life for long line
    It is possible to design high tensile strength, excellent impact resistance, especially it’s suitable for long line.
Steel Cord Conveyor Belt RMA Standard

>Standard Specification

Normal Belt Strength (N/mm) Max. Steel Cord Dia. (mm) Cord Construction Min. Cord Breaking Strength (kN/cord) Cord Pitch (mm) Min. Pulley Diameter (mm)
A B C
ST-500 2.8 7X7 5.6 10 500 400 300
ST-630 3 7X7 7 10 550 440 330
ST-800 3.5 7X7 8.9 10 600 480 360
ST-1000 4 7X7 13.2 12 700 560 420
ST-1250 4.5 7X7 16.5 12 750 600 450
ST-1600 5 7X7 21.1 12 900 720 540
ST-2000 6 7X19 26.4 12 950 760 570
ST-2500 7.2 7X19 41.7 15 1,250 1,000 700
ST-3150 8.1 7X19 52.5 15 1,400 1,120 840
ST-3500 8.6 7X19 58.4 15 1,450 1,160 870
ST-4000 9.2 7X19 66.7 15 1,650 1,320 990
ST-4500 10.1 7X19 80.4 16 1,850 1,480 1,110
ST-5000 10.6 7X19 89.3 16 2,050 1,640 1,230
  • A : Drive and head pulleys or 100% of tension rating.
  • B : Take-up and tail pulleys or 60% of tension rating.
  • C : Snub and bend pulleys or 30% of tension rating.

Cord diameter and Pitch are changeable according to conditions of conveyor lines and the customer’s request.

>Production Range

  • Tensile Strength : ST500 ~ ST5000(kN/m)
  • Width : 500mm ~ 2800mm
    Minimum Order Quantity: 100M
  • Application Groups: General Purpose, Heat Resistance, Fire Resistance, Abrasion Resistance, Oil Resistance, DF, Elective

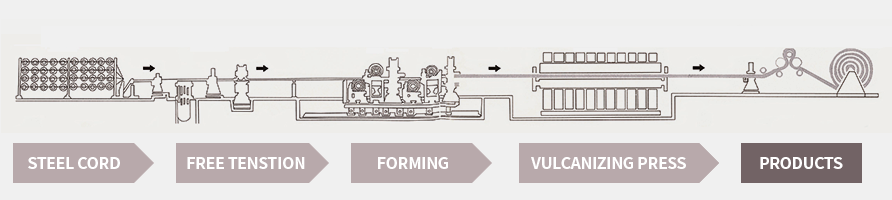

>Production Process

ST1600 steel cord belting

ST1600 steel cord belting
