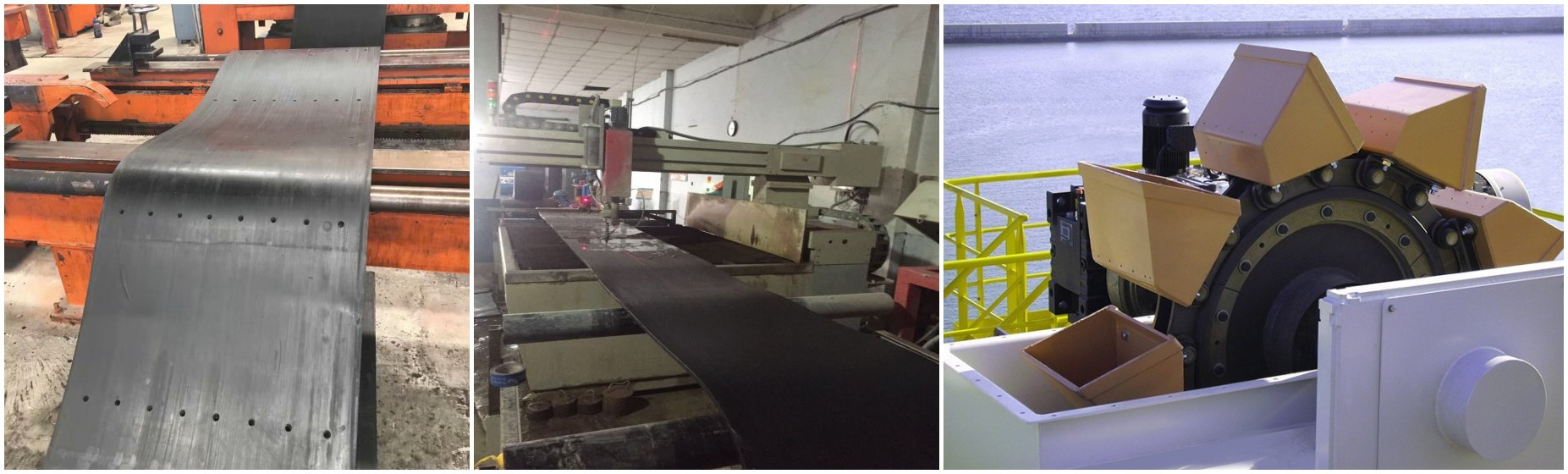

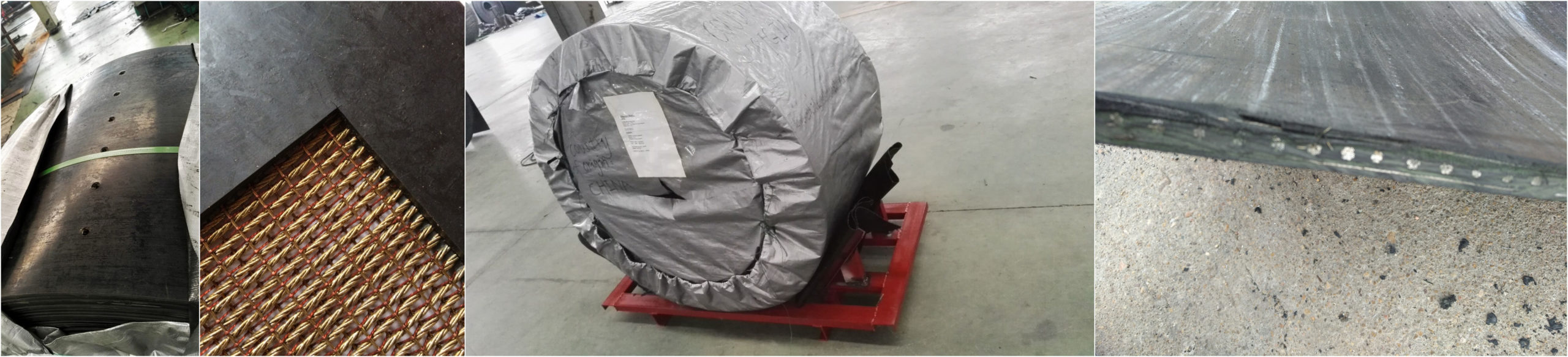

bucket elevator belt

The bucket elevator is designed for the vertical transportation and is mainly used in handling powder or granular materials. It can shorten the distance of transportation by using the buckets fixed on the belt for vertical transportation

Material of belt bucket elevator : Stainless steel
Conveying material of belt elevator : Fertilizer, Granular Urea
If this bucket elevator adopt carbon steel structure, it also could conveying other bulk solid material such as cement, coal and grain.

APPLICATIONS

Heavy duty handling of sharp and abrasive bulk materials
Installations with severe belt stresses
Highly demanding operating conditions

Technical Parameter
Features

Technical Parameter

Technical parameter

FABRIC	STRENGTH (KGF/CM/PLY)	PLY	SPECIFICATION OF THE COVER RUBBER	RUBBER GRADES
Polyester / Nylon	100	2P	0.8mm x 0.8mm	Abrasion Resistant
	135	3P	1.5mm x 1.5mm
	160	4P	2.0mm x 2.0mm	Oil Resistant
	200	5P	1/32″ x 1/32″
			1/16″ x 1/16″	Heat Resistant
			FS x FS
			BARE x BARE	Flame Resistant
			Color of the Bare Side:
			Brown	Anti-static Resistant
Polyester / Mono	135		Black

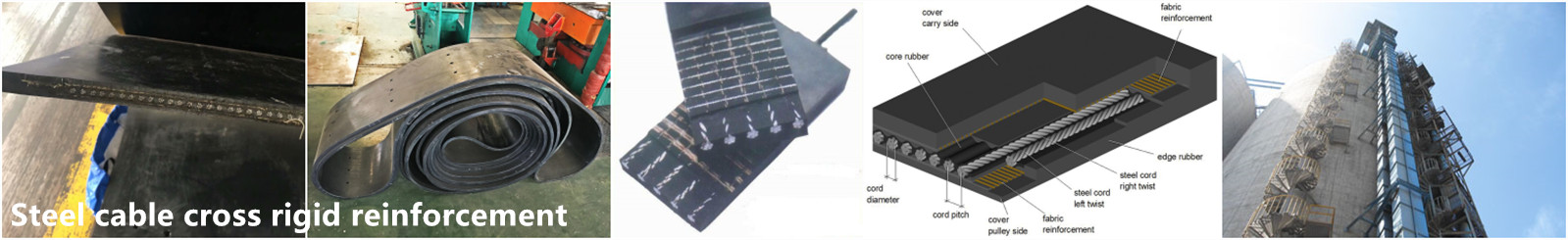

To Increase Cross Rigidity	160			Chemical Resistant
Straight Warp	315	1P
Reduce the thickness and weight of the belt and save power under same belt strength	400	2P
	600
	800
	1000
Kevlar The elongation is similar to that of the steel cord belt.	630	1P
	800
	1000
	1250
	1400
	1600

Features

The Features of Bucket Elevator

1) Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement. There is almost no feed back and excavating circumstance when materials are lifted, so invalid power is little.

2) Wide lifting range, little materials type and property requirement can not only lift general powder and granule materials, but also lift high polishing materials. Sound seal and little circumstance pollution.

3) Good running reliability, the advanced design principle and handling method assure reliability of whole machine running, the non-fault time exceed 20 thousand hours. Stable running make it reach higher lifting height.

4) The life is long, inflow feeding, non excavating with hopper and there is few extrusion and collision circumstance between materials. There is little materials sprinking during feeding and discharging to reduce machinery abrasion.
